Ladder trolley

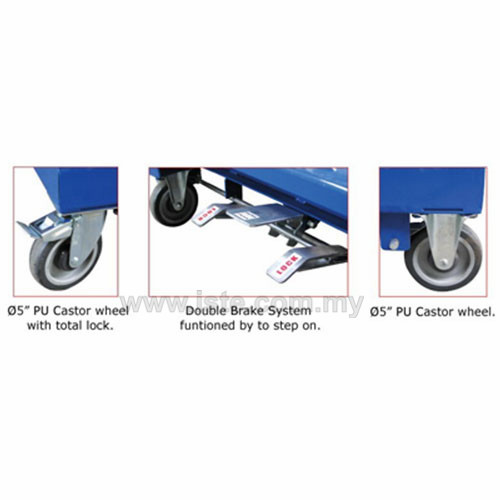

Ladder trolley is specially designed for high place and frequently picking items. The ladders are designed with double brake system to prevent accidental free-rolling, for optimum employee safety. Available in four ready-made height versions to suit customer needs.
Product Description
Specifications | ||||
Model | PC-BS6 | PC-BS7 | ||
Ladder Step | 6 | 7 | ||
Loading Capacity | 200 – 250 kgs | 200 – 250 kgs | ||
Finishing | Epoxy Powder Coating | Epoxy Powder Coating | ||
Colour | Blue | Blue | ||

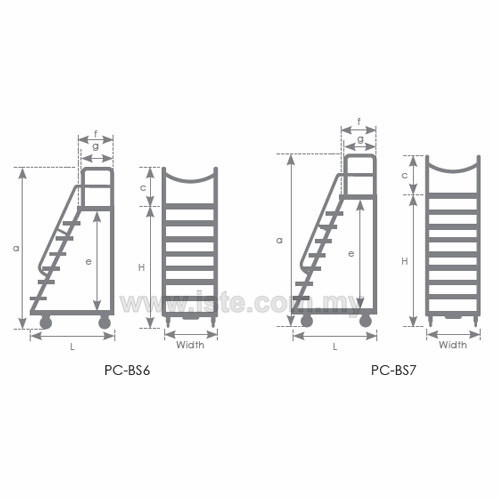

Size | a | mm | 2605 | 2903 |
L | mm | 1220 | 1220 | |
c | mm | 762 | 762 | |
H | mm | 1843 | 2141 | |
e | mm | 1550 | 673 | |
f | mm | 673 | 571 | |
g | mm | 573 | 471 | |
Width | mm | 762 | 762 |
